ANTI-SLIP GRATINGS

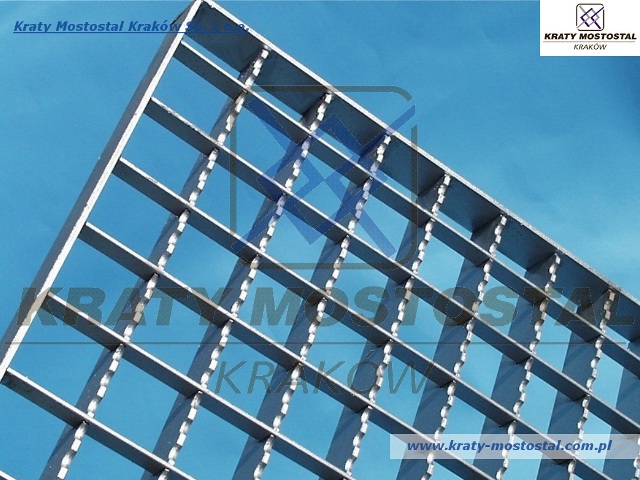

Anti-slip gratings (serrated) are made of serrated load bearing and/or cross bars. Serrated gratings are used primarily for landings whose slope is larger than 6 degrees and platforms exposed to icing or contamination with oil and grease. Anti-slip features are provided by designed serration of flat bars during product processing. Slip resistance index depends on the orientation of serrated bars in a grating and direction of traffic. The value of this index is regulated by DIN 51130 standard.

GRATINGS SERRATED - TYPES

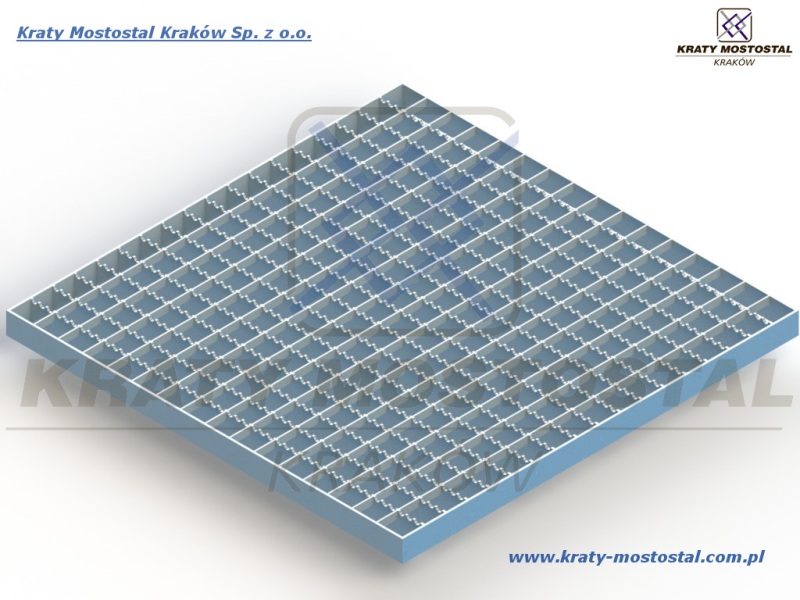

• pressed grating serrated S1 - anti-slip bearing and plain cross bar
  - thickness of load bearing bars: 2 or 3 mm
  - mesh size as per the manufacturing plan
  - spacing of 33 or 44 mm: between the cross bars


• pressed grating serrated S2 - anti-slip bearing and cross bar
  - thickness of load bearing bars: 2 or 3 mm
  - mesh as per the manufacturing plan
  - spacing of 33 or 44 mm: between the cross bars

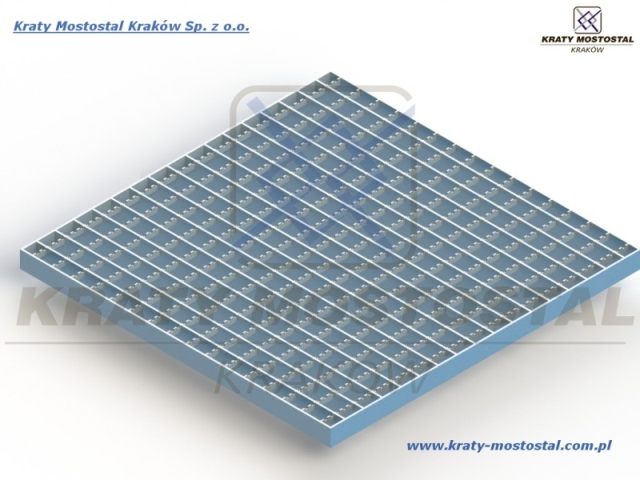

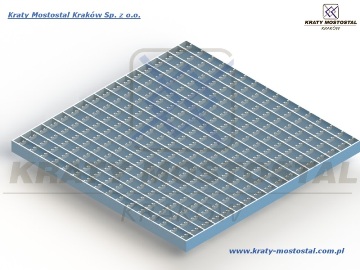

• pressed grating serrated S3 - anti-slip cross and plain bearing bar
  - thickness of bearing bars: 2 or 3 mm
  - mesh as per the manufacturing plan
  - spacing of 33 or 44 mm: between the cross bars

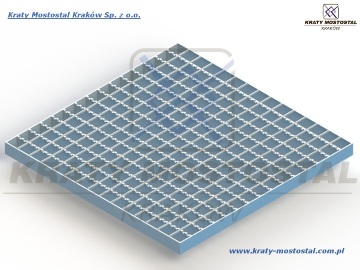

• welded grating serrated S4 - anti-slip load bearing and twisted rod
  - thickness of bearing bars: 2 or 3 mm
  - mesh size as per the manufacturing plan
  - spacing of 38 or 51 mm: between the twisted rod


Anti-slip gratings should be selected with the following criteria in mind:

• platform or driveway slope
• environmental (atmospheric) conditions
• presence of contaminants and their type
• traffic direction with respect to the orientation of flat bars in a grating

GRATING SERRATED - DIMENSIONS TECHNOLOGICAL

• MAXIMUM SIZE OF A GRATING PANEL:
  lenght: L = 2000 mm x width: B = 2000 mm


• SAMPLE MARKING

  symbol	/	mesh	/	bearing bar	/	external panel dimensions	/	number of pieces
  S1 KWO	/	33 x 44	/	40 x 3	/	L=900 x B=1200	/	12
