ENTRANCE GRATINGS

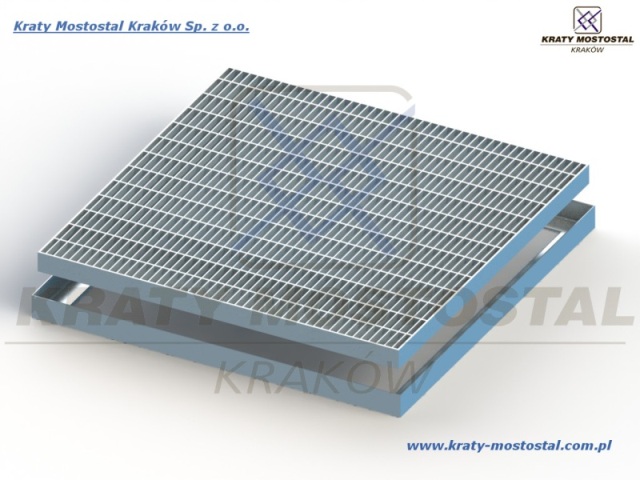

Entrance gratings are made of gratings with denser spacing between plain and/or serrated flat bars. Reducing the mesh size or adding anti-slip bars, we can increase safety of walking on gratings when the pedestrian traffic is the highest. The gratings of this type are used mainly in public use facilities, such as shopping malls or housing estates.

entrance_grating




PRODUCT CHARACTERISTIC


Entrance gratings are manufactured in two versions: with smooth or serrated flat bar (serrated grating). Minimum axial spacing between flat bars in gratings is 11 mm. Slip resistance of grating can be accomplished in 3 ways: by serrating load bearing bars (serrated S1), by serrating cross bars (serrated S3), and by serrating load bearing and cross bars (serrated S2).

We make frames of angle bars whose dimensions are adjusted to the height, length and width of the grating to help anchor the entrance gratings in a concrete surface. The frames may be anchored in concrete with fixing plates welded to the frame itself.

Note: When ordering, please correlate overall dimensions of your wipers with overall dimensions of the frame where your wiper will be placed. Our gratings are made with negative tolerances from (+0 do -4 mm).

logo

Grating with plain flat bars

entrance_grating

Grating with serrated flat bars

entrance_grating_serrated
BEARING BAR DIMENSIONSHeight [mm]20; 25; 30; 4020; 25; 30; 35; 40
Thickness [mm]1,52; 3
CROSS BAR DIMENSIONSHeight [mm]99
Thickness [mm]1,52
MESH SELECTIONSMesh spacing
(space between bearing bars)		16; 22; 33; 44; 55; 66 and other
Mesh spacing
(space between cross bars)		22; 33; 4411; 22; 33; 44

  • MAXIMUM SIZE OF A GRATING PANEL:
     lenght: L = 2000 mm x width: B = 2000 mm

  • SAMPLE MARKING
    symbol/mesh/bearing bar/external panel dimensions/number of pieces
    KWO/33 x 11/25 x 3/L=890 x B=1190/12 szt.
    S3 KWO/33 x 11/25 x 3/L=890 x B=1190/12 szt.
    symbol/dimensions of bracket/the thickness of the bracket/external panel dimensions/number of pieces
    FRAME/30 x 30/3/L=900 x B=1200/12 szt.
